T8 LED Tube Approval By CE/ROHS/UL

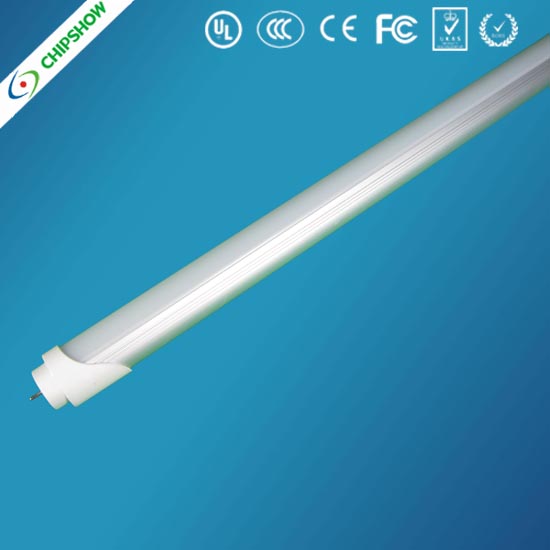

24W LED T8 Tube Light 5ft, PXR24W-A is chipshow's new generation tube, which is made by special different view angles mixing lighting design, without ultraviolet ray. Super-bright SMD LED makes the light nicer. The inner high efficiency constant current driver, with less degradation and 50000 hour lifespan, T8 LED Tube, brighter than conventional bulb.

Main Parameter:

 Power consumption  24W
 Length  5 ft
 Main materials  Glass or Transparent PC for tube
 Normal supply voltage  110V-277VAC
 Color of LED  Daylight White
 LED Qty  SMD3528
 Number of LEDs  360 PCS
 1M Illuminance  1770 lm
 LED view angle  120degree
 Rated Lifetime  Over 30, 000 hours
 Working Temp  -30°C~+50°C
 Carton MEAS (mm)  1555x265x165
 G.W/CTN  8.5kg
 CTN/20'  488 CTNs
 CTN/40'  997 CTNs

Feature:

1) An ideal candidate for fluorescent lamp replacement;
2) Heat dissipation is considerably low;
3) Low power consumption. No flash and noise;
4) Comes in PC material cover, plug into the current Fluorescent fixtures

directly;
5) Energy saving over 80% electricity saving than normal lamp, long-life Over

10 times longer than normal lighting products;
6) With pure light and high color rendering index, new type of Environmental;
7) Built with dedicated LED driver for PWM constant current supply to Ensure

longer operating life and to minimize brightness deterioration Due to over-

driven, unlike many other designs where only normal Rectifier and simple RC

circuit is employed;
8) Any individual LED failure will not cause other LEDs in working Condition to

black out. This is an added advantage over other designs;
9) UL, CE and FCC approved.

Application:

1) Supermarket, Hotels, Hospitals

2) Factories & Offices

3) Residential / Institution Buildings

4) Icebox showcase

5) Schools, Colleges & Universities
